- Use powerful & high performance MCU. Users can set functions as their demand, fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.
- Waterproof design(Note: if there is water in the ESC, Please dry the water at the connectors).
- Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with scale boat & racing boat.
- Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-thermal protection and throttle signal loss protection, make the ESC more reliable.
- Cycle menu setting, simple operation. Support setting with program box and transmitter.

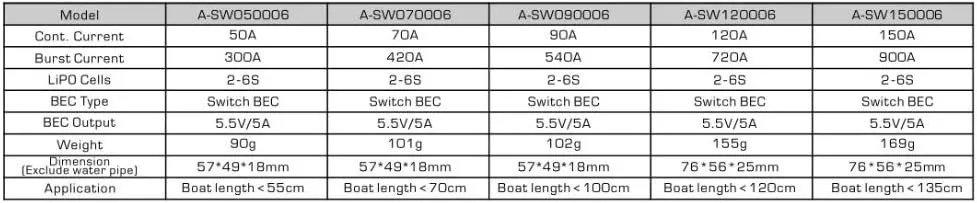

There are Five Model ESC:A-SW050006 ( 50A), A-SW070006 (70A), A-SW090006 (90A), A-SW120006 (120A), A-SW150006 (150A). Please choose the one you want.
Description:
Only ESC, no other item included.
Great application for RC boat, special structure design with built-in capacitor to prevent the components damage and corrosion protection.
Professional waterproof technology, excellent performance after long time into water.
Driving Efficiency Optimization technology with built-in BEC in 5A up to 8A, Better performance then Asynchronous rectifier BEC .
Strong powerful , 5 main functional options for selection, Meeting difference level requirement.
Easy to operate, same throttle setting method for both one way & two-way.
Features
Low-voltage protection threshold value can be set.
Built-in switch BEC, large power load with servo, lower power dissipation.
Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-thermal protection and throttle signal loss protection, make the ESC more reliable.
High power safety performance: wherever the throttle lever is, the motor will not start immediately.
Over thermal protection: when ESC temperature is over 100 °C, output power will automatically reduce. When it's lower than 80°C output power will return to normal.
Cycle menu setting, simple operation. Support setting with program box and transmitter.
