- Country of manufacture: Germany's
- Electrical Appliances and Materials Safety Act (PSE), International Marine Standards Certified,
- screws are fully resinated, so there is no need to worry about rust. The
- surface has been treated with pear-grain texture to make scratches and dirt stand out.
- has a characteristic of material that has little deterioration or discoloration over time. .90 degree twist quick open and close mechanism, allowing you to work fast. The resin lock on the lid will not fall off. You can see the status of the opening and closing is easy. Since there is no need for torque management, there is no need to worry about it and the seal is stable. You can choose between 3 types of fixing to the construction materials every time.

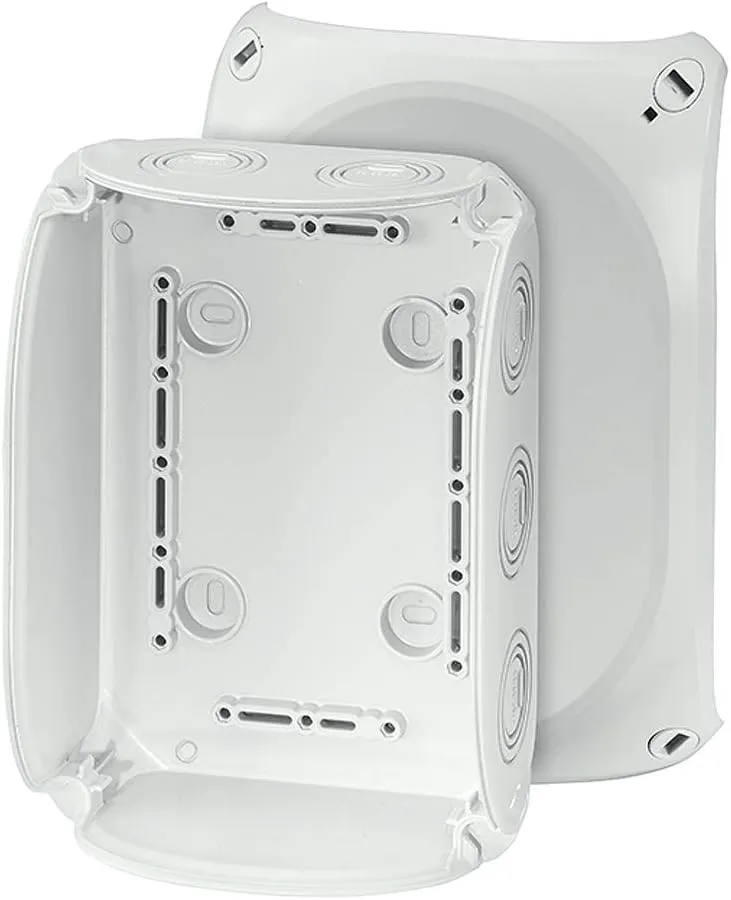

Outdoor Cable Connection Box
Electrical Appliances and Materials Safety Act (PSE) is covered under the certification period of authenticity.
Humidity: 100% ( 25°C); Water depth: 3.3 ft (1 m15 minutes); Dust and waterproof performance IP66/67.
Wide range of operations in Japan and outside Japan (JIS standard, IEC standard, CE certified).
Environmentally friendly "RoHS, Silicone, Halogen Free"
Can be installed in domestic and overseas vessels. International Marine Standard Certified "DNV GL" and "RS"
Self-extinguishing high-performance resin "Flame Retardant Grade UL94 V-0"
Ambient Temperature Range: -4°F to 154°F (-25°C to 70°C) (24 hours average or less than 55°C).
Heat resistant temperature: -40℃, max. 20℃
Impact resistant IK09 (equivalent to 11.0 x 7.9 inches (5 x 20 cm) drop shock).
"Polycarbonate resin material" that does not oxidize or corrode caused by steel plates and stainless steel.
Lighter than the same volume of metal "weight on transportation installation and construction material"
