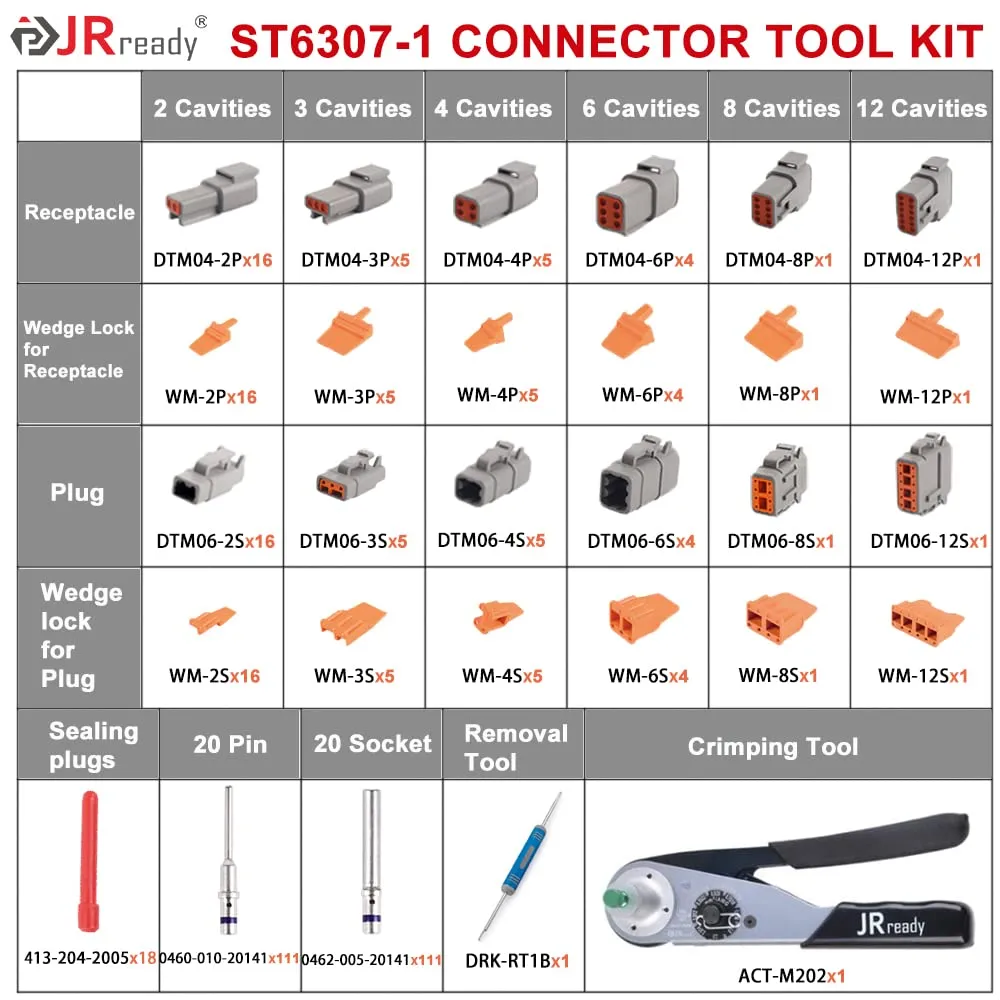

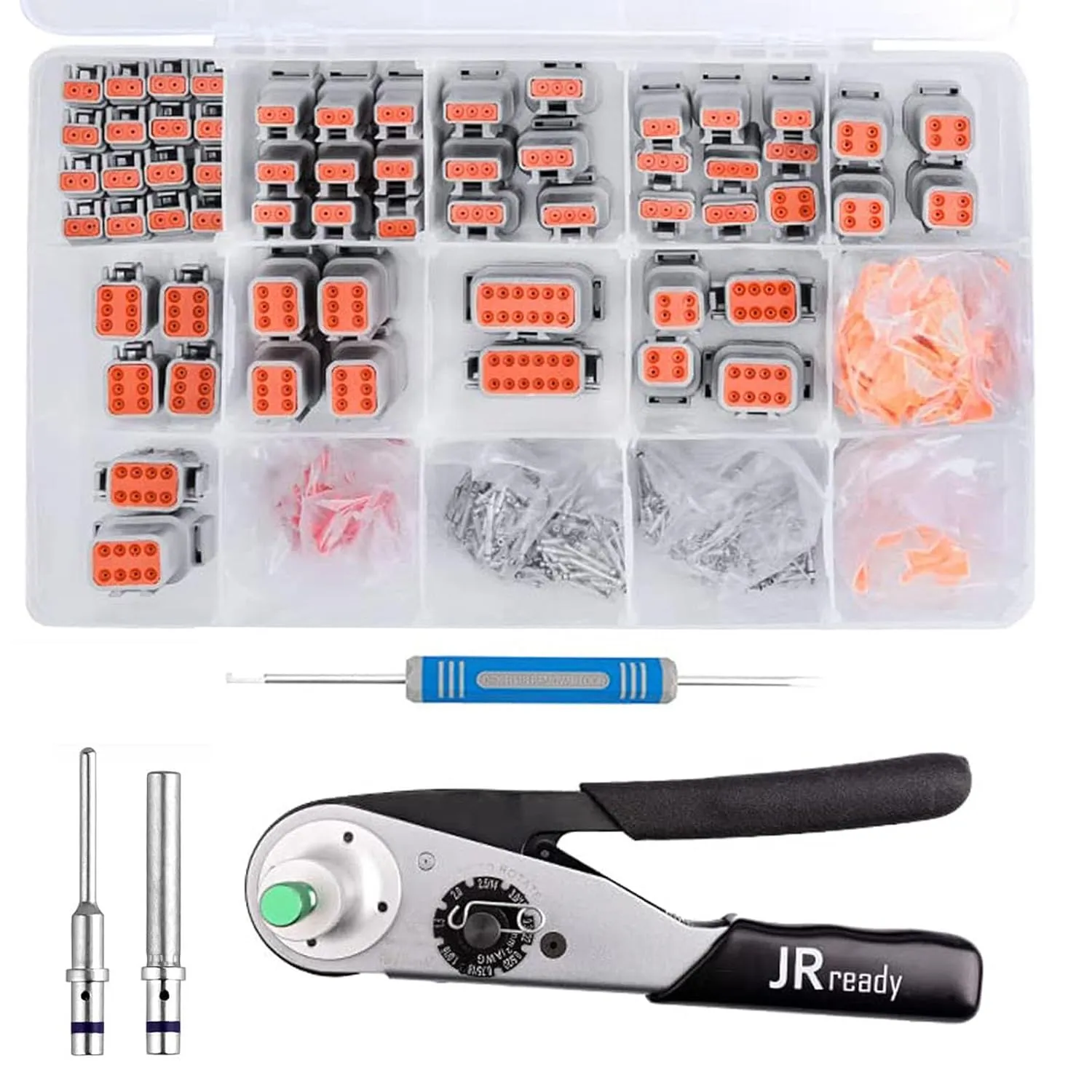

- Includes DTM Series 2 3 4 6 8 and 12 pin gray electrical connector components,connector housings,wedgelocks,red sealing plugs and size 20 contacts,crimping tool ACT-M202 with pick removal tool DRK-RT1B
- Size 20 solid contacts with purple stripe, the crimp wire range is 16-22AWG,max current rating 7.5A.Compare with stamped contacts,it have stronger stability and conductivity,recommend to use professional 4 indent crimping tool
- DTM connector has receptacle wedgelocks and plug wedgelocks,the wedgelocks help confirm proper contact alignment within each connector. Secondary wedgelocks are assembled at the mating interface and press into place.
- Connector PA66 nylon material offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.
- DTM connectors offer solutions to smaller wire gauge applications. building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multi pin connectors,the connector housings are also smaller than DT series. The DTM series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.
